Thickness:0.15-1.5mm
Width:20-2000mm
Length: As required
Temper: Can be customized
Surface Treatment: PE Film(0.5-1.5mm),Paper Interleaved(0.3-1.5mm),Mill finished,Natural Color
Thin aluminum sheet is based on thickness 0.15-1.5mm. We have sophisticated technology to control thickness tolerance and width, strict more than GB/T and other foreign standard. With customized alloy&temper, packing, weight, specifications, thin aluminum sheet is widely used in lighting industry, Solar reflector, lunch box, cookware, can, bottle cap, base plate for coating, composition, or embossing, household appliances, fin stock, refrigerators, cabinet, microwave ovens, sound equipment, etc.
|
ITEMS |
ALLOY |
TEMPER |
THICKNESS(mm) |
WIDTH(mm) |
LENGTH(mm) |
|
1 xxx |
1050, 1060, 1100, 1070, 1235 |
O-H112 H18 H*2 H*4 T4 T6 T651 |
0.15-1.5 |
10-800 800-2000 |
800-6000 or coil size |
|
3 xxx |
3003, 3105, etc |
||||
|
5 xxx |
5052, 5005, 5754,etc |
||||
|
6 xxx |
6061, 6063, 6082 |
||||
|
8xxx |
8011,8006,etc |
Chemical composition:
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Zn |
Ti |
Al |
|
1060 |
0.2 |
0.25 |
0.05 |
0.03 |
0.03 |
0.05 |
0.015-0.02 |
R |
|
1050 |
0.25 |
0.4 |
0.05 |
0.05 |
0.05 |
0.05 |
0.015-0.02 |
R |
|
1100 |
0.2 |
0.5-0.6 |
0.05 |
0.05 |
- |
0.05 |
0.015-0.02 |
R |
|
3003 |
0.2 |
0.3-0.45 |
0.05-0.15 |
1.05-1.35 |
- |
0.1 |
- |
R |
|
5052 |
0.088 |
0.296 |
0.007 |
0.038 |
2.253 |
0.009 |
0.012 |
R |
|
5083 |
</=0.4 |
0.4 |
</=0.1 |
0.4-1.0 |
4.0-4.9 |
0.25 |
</=0.15 |
R |
|
5754 |
0.07 |
0.3 |
0.006 |
0.18 |
- |
- |
0.016 |
R |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.25 |
0.15 |
R |
|
6082 |
0.8-1.5 |
0.5 |
0.1 |
0.4-1.0 |
0.6-1.2 |
0.2 |
0.1 |
R |
|
8011 |
0.55-0.59 |
0.69-0.75 |
0.02 |
0.025 |
0.01 |
0.01 |
0.015-0.02 |
R |

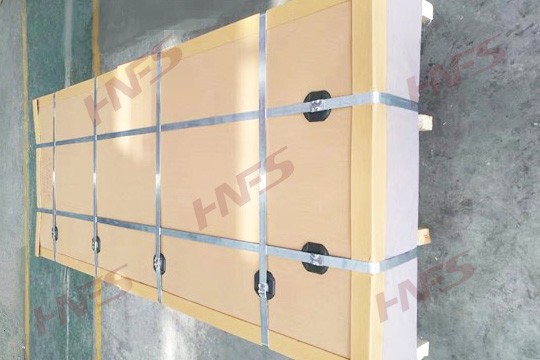

1: Wooden pallet in bottom,
2: Double plastic film, brown hard paperboard packed .
3: Steel or anodized steel strip fasten final.
4: Desiccation as required. Fumigation chapter in the wooden frame.
5 :About 2.5mt per pallet,
6: Or as customers’ requirements
The volume for 20GP container is L*W*H = 5.85M*2.35M*2.35M 26Tons N.W. Max can be loaded
The volume for 40GP container is L*W*H = 11.85M*2.35M*2.35M 26Tons N.W. Max can be loaded
