Thickness: 0.2-10.0mm
Width: 20-2300mm
Length: As required
Temper: Can be customized
Surface Treatment: PE Film,Paper Interleaved,Mill finished,Natural Color
Payment Item: TT,Irrevacable LC at sight,UPAS LC.
Notes: Customized service are available to alloy,temper,thickness,width and packaging.

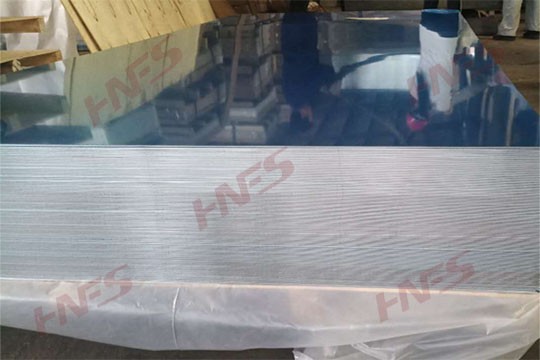

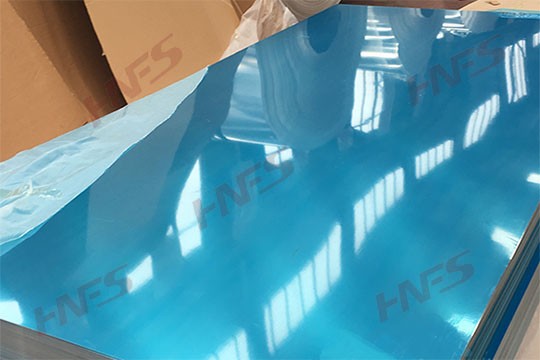

1100 aluminum sheet,we also call pure alminum sheet or non-alloy aluminum sheet with purity more than 99%, which has advantage of light, high tensile strength, yield strength, good corrosion, resistant performance, well welding property,excellent fatigue strength etc, Widely used for transportation, car licence, funiture cabinet, signs, boat, construction, decoration, building doors and windows, ceiling, anodizing, printing, panels, board, building facade, auto radiator, curtain wall engineering, truck body, aerospace industry, military industry etc. Customized service is available (Size, Alloy, Temper, Packaging& Pallet Weight).
CHEMICAL COMPOSITION OF 1100 ALUMINUM SHEET:
|
Elements |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others |
AL |
|
|
≤ |
≥ |
||||||||
|
Content |
0.95 |
0.05-0.20 |
0.05 |
- |
- |
0.1 |
- |
0.2 |
99 |
|
TECHNICAL PARAMETERS OF 1100 ALUMINUM SHEET:
|
Alloy |
Thickness |
Tensile Strength |
Yield Strength |
Elongation |
|
Temper |
Thickness(mm) |
(MPa) |
(MPa) |
(%) |
|
≥ |
||||
|
1100-O |
˃0.20 - 0.30 |
70-105 |
25 |
15 |
|
˃0.30 - 0.50 |
17 |
|||
|
˃0.50 - 1.50 |
22 |
|||
|
˃1.50 - 6.00 |
30 |
|||
|
˃6.00 - 80.00 |
28 |
|||
|
1100-H12 |
˃0.20 - 0.50 |
95-130 |
75 |
3 |
|
˃0.50 - 1.50 |
5 |
|||
|
˃1.50 - 6.00 |
8 |
|||
|
1100-H14 |
˃0.20 - 0.30 |
110-145 |
95 |
1 |
|
˃0.30 - 0.50 |
2 |
|||
|
˃0.50 - 1.50 |
3 |
|||
|
˃1.50 - 4.00 |
5 |
|||
|
1100-H16 |
˃0.20 - 0.30 |
130-165 |
115 |
1 |
|
˃0.30 - 0.50 |
2 |
|||
|
˃0.50 - 1.50 |
3 |
|||
|
˃1.50 - 4.00 |
4 |
|||
|
1100-H18 |
˃0.20 - 0.50 |
150 |
- |
1 |
|
˃0.50 - 1.50 |
2 |
|||
|
˃1.50 - 3.00 |
4 |
|||
A)International seaworthy wooden pallet or wooden case,which is eye to wall or eye to sky;
B)Wooden pallets with plastics protection and drying agent inside, then fixed by galvanized steel belt outside;
C)Loading Port: Normally in Qingdao,or according to the customers’ needs;
D)20' GP:5850mm(Length) x 2350mm(Width) x 2300mm(High) , loading 18~22 tons ;
40'GP:11850mm(Length) x 2350mm(Width) x 2300 mm(High) , loading 20~24 tons;
