Thickness: 0.5-250mm
Width: 20-2300mm
Coil Weight: As required
Temper: O,H24,H26,H28,H32,H34,H36,H38...H111
Surface Treatment: PE Film,Paper Interleaved,Mill finished,Natural Color
Payment Item: TT,Irrevacable LC at sight,UPAS LC.
Notes: Customized service are available to alloy,temper,thickness,width and packaging.
5052 aluminum coil produced by XIANGXIN METAL is certificated to International Standard,which has good workability and high fatigue strength with good corrosion resistance even in salt water. Besides,it can be anodized to improve corrosion resistance of the material in corrosive environment. So 5052 aluminum coil is high suitable for marine applications. 5052 aluminum coil can be applied to bodies of boats, buses, trucks and trailer, as well as for chemical drums. And 5052 aluminum coil is stronger than 1100 and 3003.
CHEMICAL COMPOSITION&MECHANICAL PROPERTY OF 5052 ALUMINUM COIL:
|
Elements |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Al |
|
Contents |
0.25 |
0.40 |
0.1 |
0.10 |
2.2-2.8 |
0.15-0.35 |
0.10 |
Remain |
|
Tensile Strength |
Yield Strength |
Elasticity Modulus |
Annealing Temperature |
|||||
|
σb (MPa)170～305 |
σ0.2 (MPa)≥65 |
E 69.3～70.7Gpa |
345℃ |
|||||

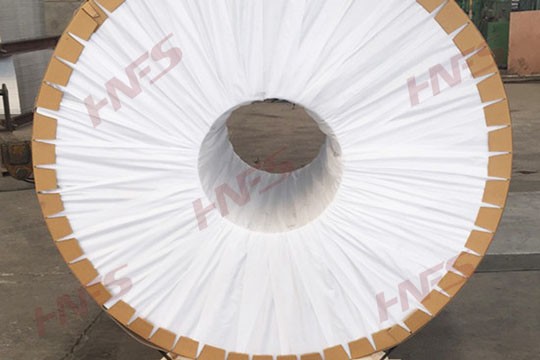

1: Eye to Sky or Eye to wall,
2: Inner Diameter is 75mm/150mm/300mm/500mm/505mm,
3: Wooden pallets with anti-water paper and craft paper,
4: Drying agent as required and plastic coverage,
5: Hard board on the galvanized steel fasten point,
6: Or can be customized as buyers’ requirements.
Loading Port: Any port you like in China
The volume for 20FT container is 5850mm (LENGTH)*2350mm (WIDTH)*2380mm(HIGH) 18~27Tons can be loaded
The volume for 40FT container is 11850mm (LENGTH)*2350mm (WIDTH)*2380mm(HIGH) 24~27Tons can be loaded
Two stypes for reinforcement: The rope reinforcement; The wooden reinforcement.
