Thickness: 0.2-200mm
Width: 20-2300mm
Length: As required
Temper: Can be customized
Surface Treatment: PE Film,Paper Interleaved,Mill finished,Natural Color
Payment Item: TT,Irrevacable LC at sight,UPAS LC.
Notes: Customized service are available to alloy,temper,thickness,width and packaging.

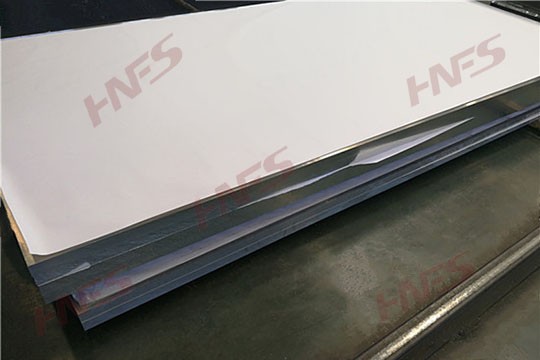

5052 aluminum sheet belongs to aluminum-Magnesium with widely application,especially architecture.Magnesium is the main chemical component of 5052 aluminum sheet,so it provided with good corrosion resistance,weldability,cold processing and moderate strength.Offen making airplane,automotive fuel tank,pipeline,vehicle,ships,street lamp,instrument shell,revit etc.
CHEMICAL COMPOSITION&MECHANICAL PROPERTY OF 5052 ALUMINUM SHEET:
|
Elements |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Al |
|
Contents |
0.25 |
0.40 |
0.1 |
0.10 |
2.2-2.8 |
0.15-0.35 |
0.10 |
Remain |
|
Tensile Strength |
Yield Strength |
Elasticity Modulus | Annealing Temperature | |||||
|
σb (MPa)170～305 |
σ0.2 (MPa)≥65 |
E 69.3～70.7Gpa |
345℃ |
|||||

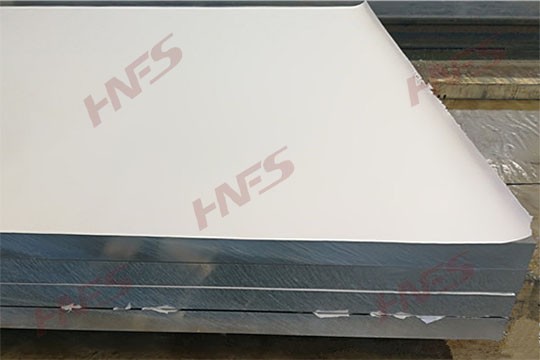

1: Wooden pallet with waterproof paper and brown hardboard,
2: Desiccation as required and plastic coverage,
3: fumigation chapter in wooden frame,
4: Steel strip or anodized steel fasten,
5 : Or can be customized as buyers’ requirements.
