Thickness: 0.2-200mm
Width: 20-2300mm
Length: As required
Temper: Can be customized
Surface Treatment: PE Film,Paper Interleaved,Mill finished,Natural Color
Payment Item: TT, Irrevocable LC at sight,UPAS LC
Notes: Customized service are available to alloy,temper,thickness,width and packaging.

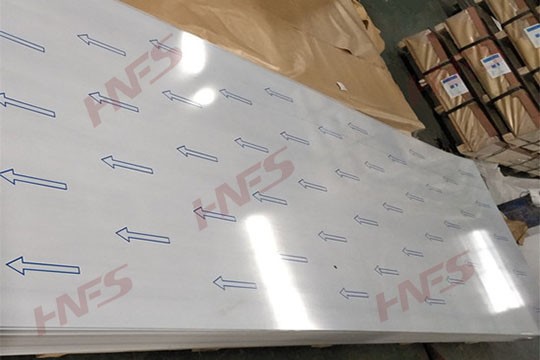

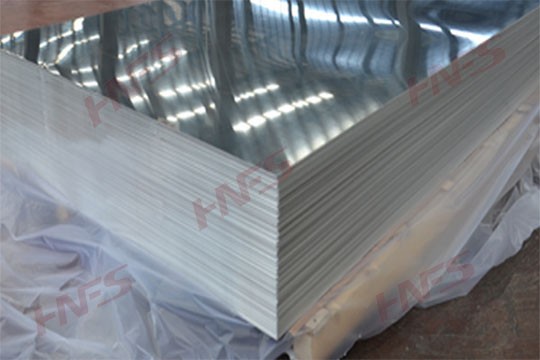

5083 aluminum sheet belongs to the Al-Mg-Si series of high magnesium alloy with s good strength, good corrosion resistance,weldability, good cold workability.With the development of economy,the 5083 aluminum sheet are widely used in marine,ship,automotive,railway,subway light rail,rail traffic,refrigeration equiment,drilling equipment,transportation industry etc.
CHEMICAL COMPOSITION&MECHANICAL PROPERTY OF 5083 ALUMINUM SHEET:
|
Elements |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ti |
Zn |
Al |
|
Contents |
0.4 |
0.4 |
0.1 |
0.40-0.10 |
4.0-4.9 |
0.05-0.25 |
0.15 |
0.25 |
Remain |
|
Tensile Strength |
Yield Strength |
Elongation |
Elongation |
||||||
|
σb (MPa)≥270 |
σ0.2 (MPa)≥110 |
δ10 (%)：≥20 |
δ5 (%)：≥12 |
||||||
CERTIFICATE: GB/T19001-2016 idt ISO9001:2015
TECH STANDARD: GB/T3880-2012
CHEMICAL COMPOSITION: GB/T3190-2012
1: Wooden pallet with waterproof paper and brown hardboard,
2: Desiccation as required and plastic coverage,
3: fumigation chapter in wooden frame,
4: Steel strip or anodized steel fasten,
5 : Or can be customized as buyers’ requirements.
