Thickness: 0.3 mm - 6.0mm
Width: 300mm - 1525mm
Length: As required
Tolerance: +/-0.02mm
Surface Treatment:mill finish, bright finish

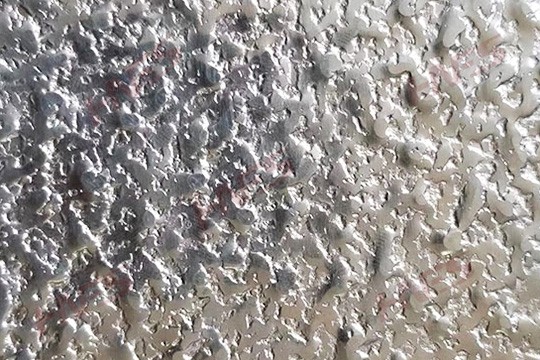

Pattern Type:5 bars, diamond,stucco,one-bar
Notes:Customized service are available to alloy,temper,thickness,width and packaging.

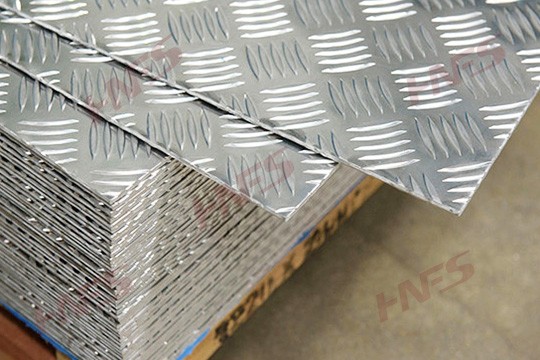

Aluminum embossed sheets means that small metallic parts pop out a few mm over the main surface, thus creating a firmer grip between shoes and the plate. Aluminum tread plate is a high-cost modern materials.This is basically what accounts for the plate's nonskid properties, and that’s why they are so widely used in roofing,building, curtain wall, cars, platforms,ceiling,cargo containers,bus bodies and so on.
Standard Specification --Base material conforms to GB/T 3880
|
ALLOY |
TEMPER |
|
1050,1060,1100,3003,5052 |
O,H14,H22,H24,H32 |
1060 aluminum plate for the plate from the processing of aluminum alloy pattern plate, able to adapt to the normal environment, low prices. Usually cold storage, flooring, packaging and more use of this pattern aluminum sheet.
3003 is well known as the main raw material processing, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance Less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.
|
Pattern Type |
Surface treatment |
Pattern Length |
Thickness |
|

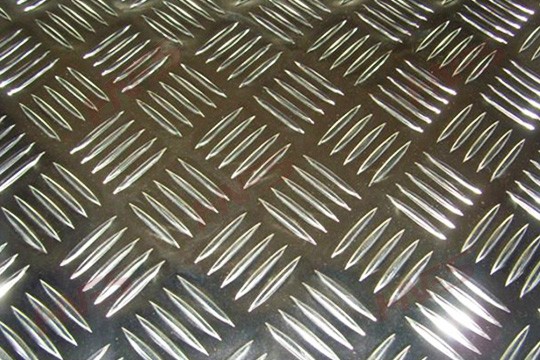

Big 5 bar |
Mill finish |
40-45MM |
0.9-6.0MM |
|
Small 5 bar |
Mill finish |
32-35MM |
0.9-6.0MM |
|

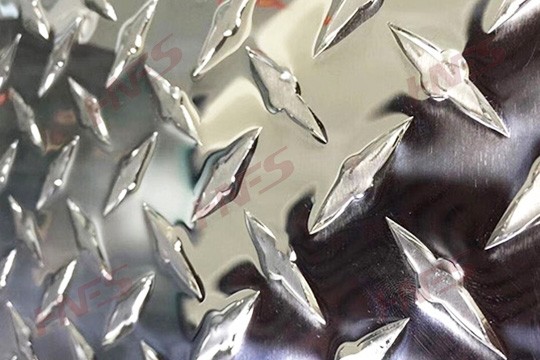

Diamond |
Bright finish |
30-33MM |
1.0-6.0MM |
As usual, the embossed pattern shall be confirmed by customer before placing order.
A)International seaworthy wooden pallet;
B)Wooden pallets with plastics protection and drying agent for the sheet inside, then fixed by galvanized steel belt outside;
C)Interleaved paper between aluminum checkered sheets to protect the sheets surface from scratches;
D)Loading Port: Normally in Qingdao,or according to the customers’ needs;
E)20'GP:5850mm(Length) x 2350mm(Width) x 2300mm(High) , loading 18~26 tons ;
40'GP:11850mm(Length) x 2350mm(Width) x 2300 mm(High) , loading 20~27 tons;
