Thickness : 0.3 mm - 3.0mm
Width : 300mm - 1500mm
Length: As required
Tolerance: +/-0.02mm
Surface Treatment:mill finish
Pattern Type:
Notes:Customized service are available to alloy,temper,thickness,width and packaging.

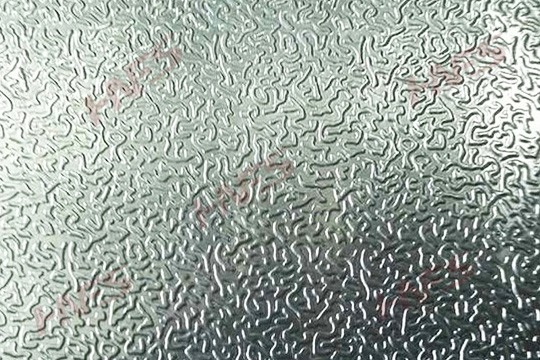

Aluminum is a light-weight metal that is the material of choice throughout many industries. One of the more popular ones you can find on the market today is a stucco embossed aluminum sheet.Stucco embossed aluminum sheets are made of different alloys. They need to have a required amount of flexibility and toughness to be graded accordingly.
|
ALLOY |
TEMPER |
|
1050,1060,1100,3003,5052 |
O,H14,H22,H24,H32 |
1060 aluminum plate for the plate from the processing of aluminum alloy pattern plate which is able to adapt to the normal environment, low prices. Aluminum checkered plate is usually used in cold storage, flooring, packaging and so on.
3003 which is called Al-Mn alloy is known as the main raw material processing, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance Less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.
5052 of aluminum as raw material processing, with good corrosion resistance, hardness, anti-rust performance. Usually they are used in special places, such as ships, cars lights, humid environment, the high hardness of aluminum, a certain load-bearing capacity.
According to Chinese ,American and European standard specification.
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Other |
Al(min) |
|
1050 |
0.25 |
0.4 |
0.05 |
0.05 |
0.05 |
- |
0.05 |
0.05 |
≤ 0.03 |
99.5 |
|
1060 |
0.25 |
0.35 |
0.05 |
0.03 |
0.03 |
- |
0.05 |
0.03 |
≤ 0.03 |
99.6 |
|
1100 |
0.95 |
0.05-0.2 |
0.05 |
- |
- |
0.1 |
- |
≤ 0.2 |
99.0 |
|
|
3003 |
0.6 |
0.7 |
0.05-0.2 |
1.0-1.5 |
- |
- |
0.25 |
0.15 |
≤ 0.2 |
Remain |
|
5052 |
0.25 |
0.4 |
0.1 |
0.1 |
2.2-2.8 |
0.5-0.35 |
0.1 |
- |
≤ 0.2 |
Remain |
Pattern Type:One is Classical and the other pattern is Varied, so the embossed pattern shall be confirmed by customer before placing order.
A)International seaworthy wooden pallet;
B)Wooden pallets with plastics protection and drying agent for the sheet inside, then fixed by galvanized steel belt outside;
C)Interleaved paper between aluminum checkered sheets to protect the sheets surface from scratches;
D)Loading Port: Normally in Qingdao,or according to the customers’ needs;
E)20'GP:5850mm(Length) x 2350mm(Width) x 2300mm(High) , loading 18~26 tons ;
40'GP:11850mm(Length) x 2350mm(Width) x 2300 mm(High) , loading 20~27 tons;
