Thickness: 1.0 mm - 6.0mm
Width: 300mm - 1525mm
Length: As required
Tolerance: +/-0.02mm
Surface Treatment:mill finish, bright finish
Pattern Type: Diamond,one bar
Notes:Customized service are available to alloy,temper,thickness,width and packaging.

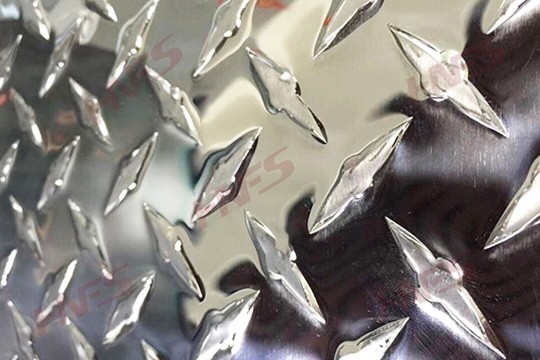

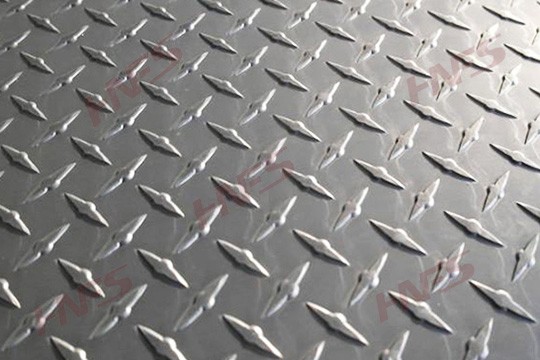

Aluminum diamond plate haves good forming, drilling and welding ability, Aluminum Diamond Plate is easy to fabricate and its raised diamond lug pattern provides good slip resistance which is widely used for industrial applications - flooring, loading ramps, trench covers, dock flooring, stair treads, elevator floors, freezers floors and etc.
Standard Specification --Base material conforms to GB/T 3880
|
ALLOY |
TEMPER |
|
1050,1060,1100,3003,5052 |
O,H14,H22,H24,H32 |
3003 is well known as the main raw material processing, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance Less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.
5052 which is called Al-Mg alloy with good corrosion resistance, hardness, anti-rust performance. Usually they are used in special places, such as ships, cars lights, humid environment, the high hardness of aluminum, a certain load-bearing capacity.
|
Tensile Strength 5XXX series |
Hardness for 5XXX series |
|
≥185-345Mpa |
53-100HB |
A)International seaworthy wooden pallet;
B)Wooden pallets with plastics protection and drying agent for the sheet inside, then fixed by galvanized steel belt outside;
C)Interleaved paper between aluminum diamond sheets to protect the sheets surface from scratches;
D)Loading Port: Normally in Qingdao,or according to the customers’ needs;
E)20' GP:5850mm(Length) x 2350mm(Width) x 2300mm(High) , loading 18~26 tons ;
40'GP:11850mm(Length) x 2350mm(Width) x 2300 mm(High) , loading 20~27 tons;
