Thickness:0.3 mm - 6.0mm
Width:300mm - 1525mm
Length:As required
Tolerance:+/-0.02mm
Surface Treatment:mill finish, bright finish
Pattern Type:5 bars, diamond,stucco,one-bar
Notes:Customized service are available to alloy,temper,thickness,width and packaging.

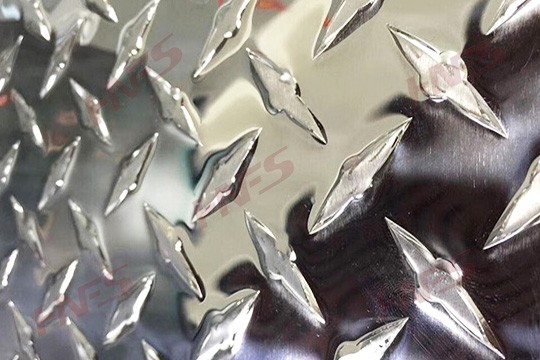

Bright Finish Aluminum Tread Plate means that small metallic parts pop out a few mm over the main surface, thus creating a firmer grip between your shoe and the plate. This is basically what accounts for the plate's nonskid properties, and why they are so widely used in roofing,building, curtain wall, air conditioners, cars, platforms, refrigerators,packaging pipes, table legs, Handle, cable trough and cover, chair, and so on.
Standard Specification --Base material conforms to GB/T 3880
|
ALLOY |
TEMPER |
|
1050,1060,1100,3003,5052 |
O,H14,H22,H24,H32 |
1060 aluminum plate for the plate from the processing of aluminum alloy pattern plate which is able to adapt to the normal environment, low prices. Aluminum chequered plate is usually used in cold storage, flooring, packaging and so on.
3003 which is called Al-Mn alloy is known as the main raw material processing, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance Less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.
|
Pattern Type |
Surface treatment |
Pattern Length |
Thickness |
|
Big 5 bar |
Bright finish |
35-38MM |
1.2-6.0MM |
|
Small 5 bar |
Bright finish |
30-32MM |
1.2-6.0MM |
|
Diamond |
Bright finish |
30-33MM |
1.0-6.0MM |
As usual, the embossed pattern shall be confirmed by customer before placing order.
A)International seaworthy wooden pallet;
B)Wooden pallets with plastics protection and drying agent for the sheet inside, then fixed by galvanized steel belt outside;
C)Interleaved paper between aluminum checkered sheets to protect the sheets surface from scratches;
D)Loading Port: Normally in Qingdao,or according to the customers’ needs;
E)20’ GP:5850mm(Length) x 2350mm(Width) x 2300mm(High) , loading 18~26 tons ;
40’ GP:11850mm(Length) x 2350mm(Width) x 2300 mm(High) , loading 20~27 tons;
