Alloy：AA1050,1060,1070,1100,3003,3105,5052
Grade： O ,H14,H24,H18 and etc.
Thickness：0.2-3.0mm
Width：20mm to 1500mm
Surface: Embossed, mill finish,coated
Color: Metallic Color, Matt Color, High Glossy Color, Stone Color, Sparkling, RAL or customization.
MOQ: 5 Tons per size
Notes:Different specification of IDEABOND Color- Coated Aluminium Coil are available, We provide customized service.

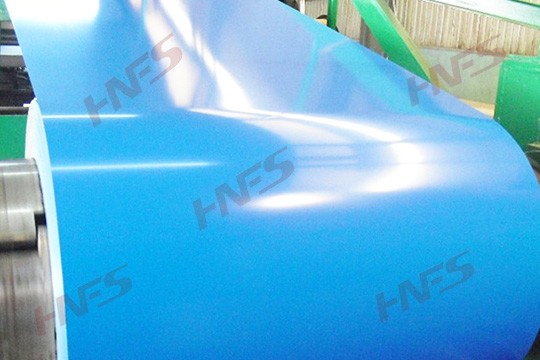

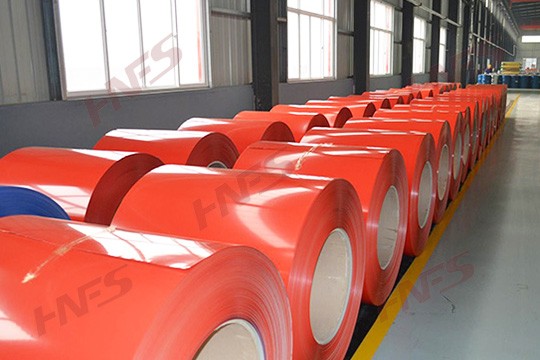

Pre Painted aluminum coil refers to the aluminum coil through coating and coloring treatment generally includes PE coated aluminum coil and PVDF coated aluminum coil. The coating lines is designed specially for aluminum coil, it is more stable and the coating layer is more smooth durable, with less color difference.
|
Coating paint: |
PVDF, PE(Polyester), |
|
Coating thickness: |
PE:>=16 micron , PVDF:>=25 micron |
|
Gloss： |
10-100% |
|
Coating Hardness (pencil resistance): |
More than 2h |
Application:
The pre painted aluminium coils can be used for roofing & cladding system,curtain wall, composite panel,electrical transformer,decoration ,ACP,signboards ,advertisement and etc.
A)International seaworthy wooden pallet or wooden case,which is eye to wall or eye to sky;
B)Wooden pallets with plastics protection and drying agent inside, then fixed by galvanized steel belt outside;
C)Loading Port: Normally in Qingdao,or according to the customers’ needs;
D)20'GP:5850mm(Length) x 2350mm(Width) x 2300mm(High) , loading 18~22 tons ;
40'GP:11850mm(Length) x 2350mm(Width) x 2300 mm(High) , loading 20~24 tons;
