Thickness:1.0-6.0mm
Width: 800-1800mm
Length: As required
Temper: Can be customized
Surface Treatment: embossing with pattern, mill finish or polishing, PE Film or Paper Interleaved

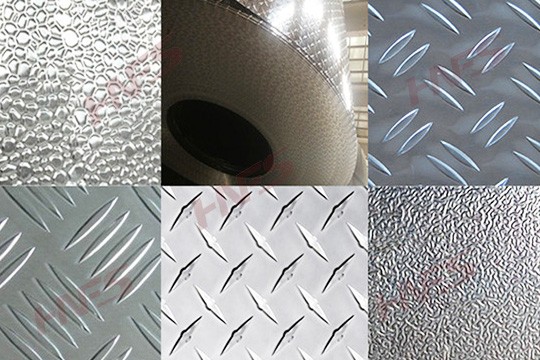

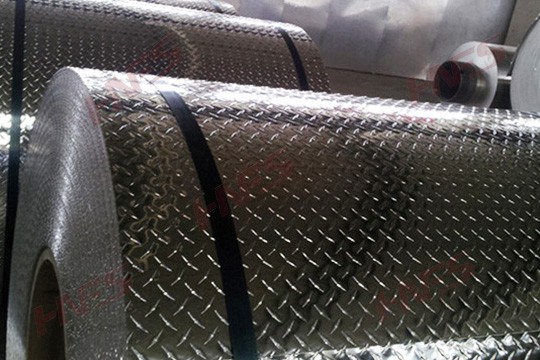

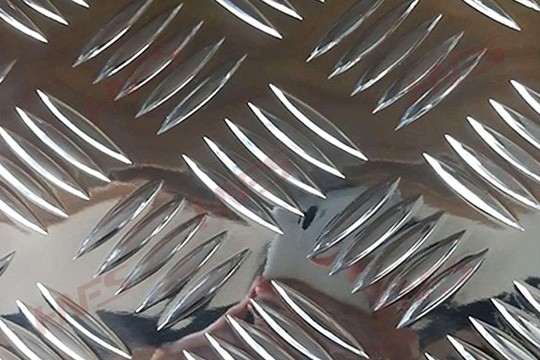

Tread aluminum coil has the characteristics of high weather resistance, anti scratch anti-corrosion, easy processing installation, and high brightness, with customized alloy&temper, specification, pallet weight. Kinds of patterns can be chosen, such as big and small 5 bars, diamond, stucco, one bar, three bars pattern,etc. Tread plate/5bars embossed coil is more commonly used. Tread aluminum coil is used in shipbuilding, boilers, cars, tractors, train carriages and construction occupations. Because of its protruding appearance and anti-skid effect, the pattern steel plate can be used as floors, workshops, escalators, work frames, pedals, vessel decks, car floors, decorated inside and outside the car /building frame, windows, doors, ceiling, decorating panel and curtain wall,etc.
|
GB/T 3880-2006 |
||||||||
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Zn |
Ti |
Al |
|
1060 |
0.2 |
0.25 |
0.05 |
0.03 |
0.03 |
0.05 |
0.015-0.02 |
R |
|
1050 |
0.25 |
0.4 |
0.05 |
0.05 |
0.05 |
0.05 |
0.015-0.02 |
R |
|
1100 |
0.2 |
0.5-0.6 |
0.05 |
0.05 |
- |
0.05 |
0.015-0.02 |
R |
|
3003 |
0.2 |
0.3-0.45 |
0.05-0.15 |
1.05-1.35 |
- |
0.1 |
- |
R |
|
5052 |
0.088 |
0.296 |
0.007 |
0.038 |
2.253 |
0.009 |
0.012 |
R |
|
5083 |
</=0.4 |
0.4 |
</=0.1 |
0.4-1.0 |
4.0-4.9 |
0.25 |
</=0.15 |
R |
|
5754 |
0.07 |
0.3 |
0.006 |
0.18 |
- |
- |
0.016 |
R |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.25 |
0.15 |
R |
|
6082 |
0.8-1.5 |
0.5 |
0.1 |
0.4-1.0 |
0.6-1.2 |
0.2 |
0.1 |
R |
|
8011 |
0.55-0.59 |
0.69-0.75 |
0.02 |
0.025 |
0.01 |
0.01 |
0.015-0.02 |
R |
1.Fumigated wooden pallet. 2.5-5mt per pallet.
2.Seaworthy wooden pallets with plastics protection;
3.Or can be made based on customers’ requirement;
4.Normally, we have four layers of packing: wooden pallets, hardboard, Kraft paper and plastic, desiccants into package.
The container for 20FT container is L*W*H = 5.85M*2.35M*2.35M 15-26Tons N.G. Max can be loaded
The container for 40FT container is L*W*H = 11.8M*2.35M*2.35M 20-26Tons N.G. Max can be loaded
Loading Port: Main port in China.
Delivery time: About 25 days.
